Products Information

ConnectorsMiniature Coaxial Connectors

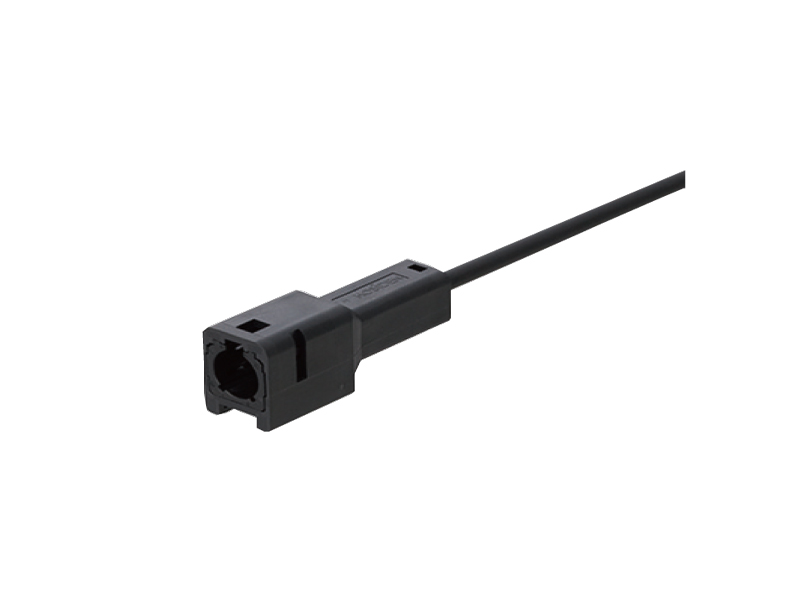

Plug

Plug
Plug
Model No
HPC1152

Application

Automotive

Automotive

Drawing

Spec

3D Data

Click here　Drawing and Spec documents

3D Data

Right-click on the link and choose Save as.
After download, 3D file can be opened with any kinds of 3D software.

Spec

Type
Plug
Rating
1 A 60 V DC
Contact Resistance
5 mΩ max.
Insulation Resistance
1000 MΩ max.
Withstanding Voltage
500 V AC / 1 minute
Characteristic Impedance
50 Ω
Waterproof
－
