New Product
High Performance Digital MEMS Microphone
[Overview and Design Intentions]
This is a microphone of dimensions 4 mm x 3 mm x t1.2 mm. It has realized a size-reduction and improved performance when compared to our existing product (4 mm x 3 mm x t1.5 mm).
The features are: Low current consumption / High SNR / Flat low-frequency characteristics / Low distortion.
Specifically, current consumption has been reduced to 0.46 mA Typ, which is 1/2 or less than in our existing product.
Even lower current consumption is possible when mode switching using the clock frequency.
Product Name and Model Number
[Product Name]
・High-performance digital MEMS microphone
[Model Number]
・KRM5403-011010
[Features]
・Dimensions: 4 x 3 x t1.2 mm
・Low current consumption (0.46 mA Typ., 1/2 or less than that of our existing product)
・High SNR, flat low-frequency characteristics, low distortion
[Applications]
・ANC (Active Noise Cancellation) for headphones
・Smartphones, DSC, DVC and more
Production and Sales Plan
| Sample start | Ongoing |
|---|---|
|
Sales start |
December 2024 |
|
Planned monthly production |
1 to 2 million pcs |
|
Sample price |
To be determined |
[Main Specifications]
| Product No. | KRM5403-010010(Existing product) | KRM5403-011010(New product) |
|---|---|---|
| Dimensions | 4.0×3.0×t1.5mm |
4.0×3.0×t1.2mm |
| Power voltage | 1.8V(1.62～3.3V) |
1.8V(1.71～3.6V) |
| Clock frequency | Standard Mode：3.072MHz Low Power Mode：768kHz |
|
| Output format | PDM | |
| Sensitivity | -36±1dBFS/Pa (1kHz) | |
| SNR | 72.5dB(A)Typ. | 72dB(A)Typ. |
| Current consumption |
Standard Mode： 1 mA Typ. Low Power Mode： 0.3 mA Typ. Standby Mode： 5 µA Typ. |
Standard Mode： 0.46 mA Typ. Low Power Mode： 0.17 mA Typ. Standby Mode： 5 µA Typ. |
| Distortion factor | 10 % Max. at 128 dBSPL (1kHz) | |

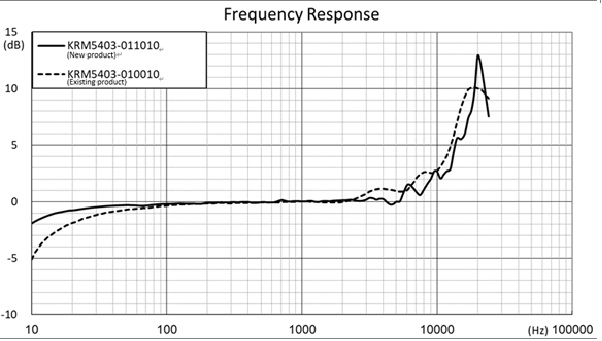

| LFRO (Low Frequency Roll-off) |
15 Hz Typ. | 10 Hz Typ. |
